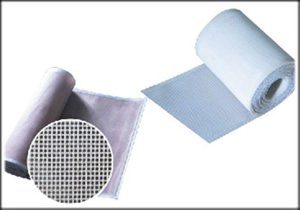

Nylon Filter Mesh

Nylon mesh is widely used in liquid and air filtering, mainly textile printing and dyeing, printing plate, electronic printing, ceramics, glass printing and other industries. Supplied in two forms of processing: needlefelt or woven mesh fabric.

Feature:
1. Nylon filter mesh offers high durability and best tensility: all threads are the best domestic or imported.
2. Nice appearance, standard size
3.Clean and smooth: the nylon fabric never fades and gets jammed.

Material : PP, PO, PE, NMO, PTFE.
Usage : Liquid Filter
Cloth : Needlefelt or Woven Mesh.
Size : Standard or Customized.
Ring Material : Plastic (PP/PO/PE) or SS (Stainless Steel) or Carbon Steel or Zinc Steel.
Method : Welded or Sewn.
Surface treatment: Singed finished and glazed finish.
Application: Automotive, Food and Beverage,Resins and Coatings, Electronics, Oil and Gas, Municipal Water, Industrial Water, Pulp and Paper.

We produce the following:

Nylon Filter Mesh, Washable Filter.
Air Condition Nylon Mesh Air Filter,Pre Filter Panel Filter .
Air conditioning Nylon mesh filter.
100 Micron Nylon Filter Mesh Fabric.
Polypropylene Filter Nylon Mesh.

Material: 100% Nylon,Width:1.27cm,1.45cm,3.2cm,Micron:6micron to 2000micron.

Nylon filter mesh specifications: 1)Material: polyamide(PA6/PA66) 2)Mesh count: 22 mesh/ inch 3)Thread diameter:0.30mm+ 0.035mm 4) Thickness: 0.540mm+ 0.040mm 5)Mesh opening:0.800mm+ 0.055mm 6) Open area:55%+ 10%

60 Micron Nylon Filter Mesh Fabric

Material: 100% nylon, polyester available.
Weaving: Plain weave,Twill weave available.
Mesh Count: 6~200 mesh/cm(16mesh~500 mesh/inch).
Max. width: 365cm (143inch).
Color: white,yellow,black.
Mono filament or Double filament.
We can provide products in special specifications according our customers.

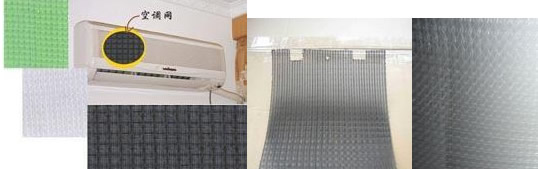

Nylon Mesh Cloth For Air Conditioning Filter:

PP Material, 335mmx260mm, Usage: air filter.

Mesh/Inch	Wire Gauge SWG	Aperture mm
40x40mesh	36	0.44
50x50mesh	38	0.36
80x80mesh	42	0.21
100x100mesh	44	0.17
120x120mesh	44	0.13
150x150mesh	46	0.108



We offer 20~1200 micron filter mesh in polyester and nylon material.
